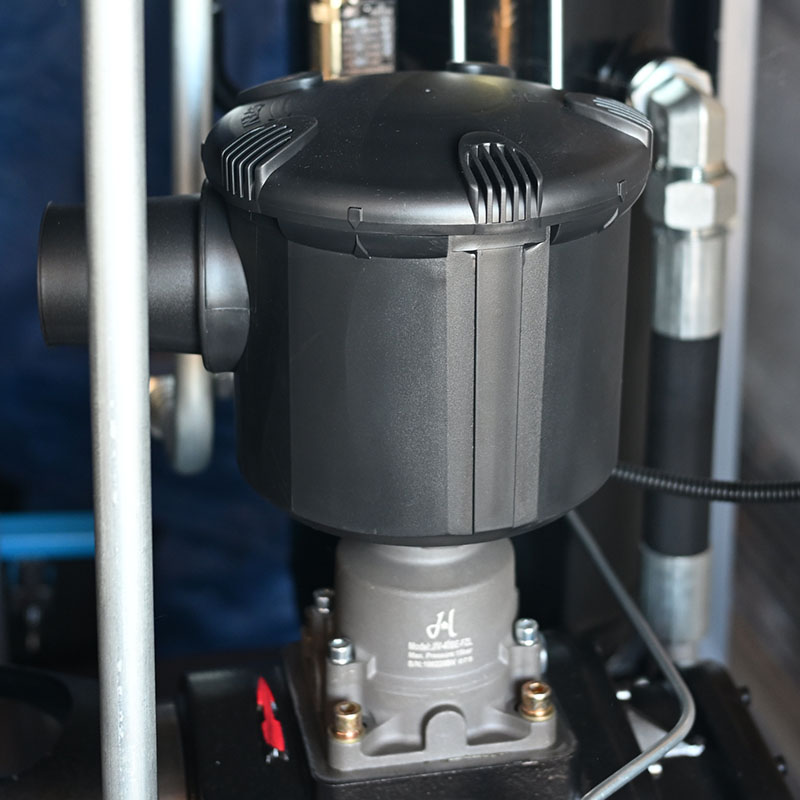

Air intake filter location |

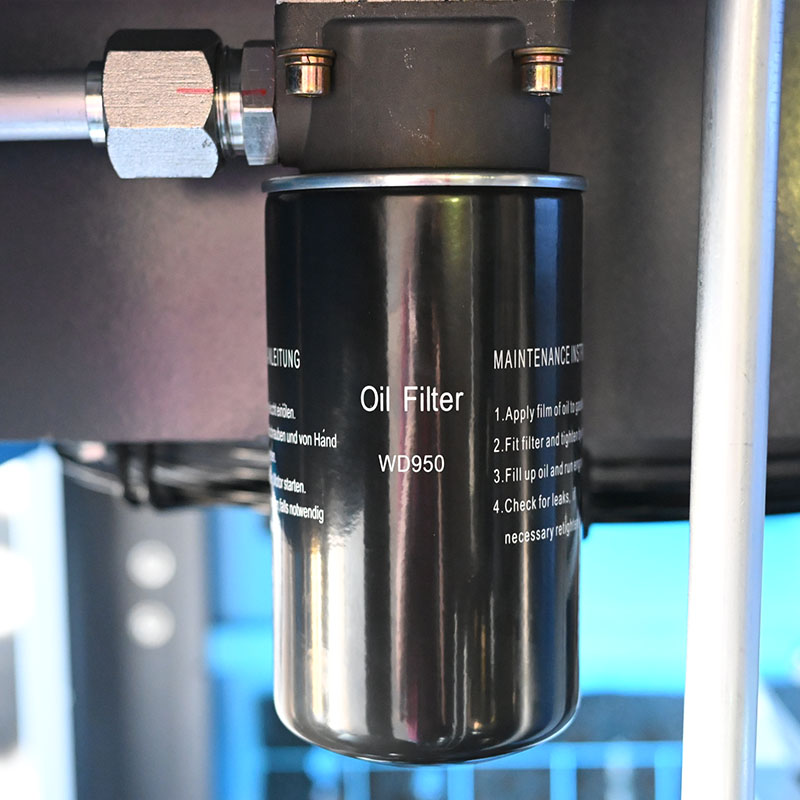

Oil filter | |
 |
 |
|

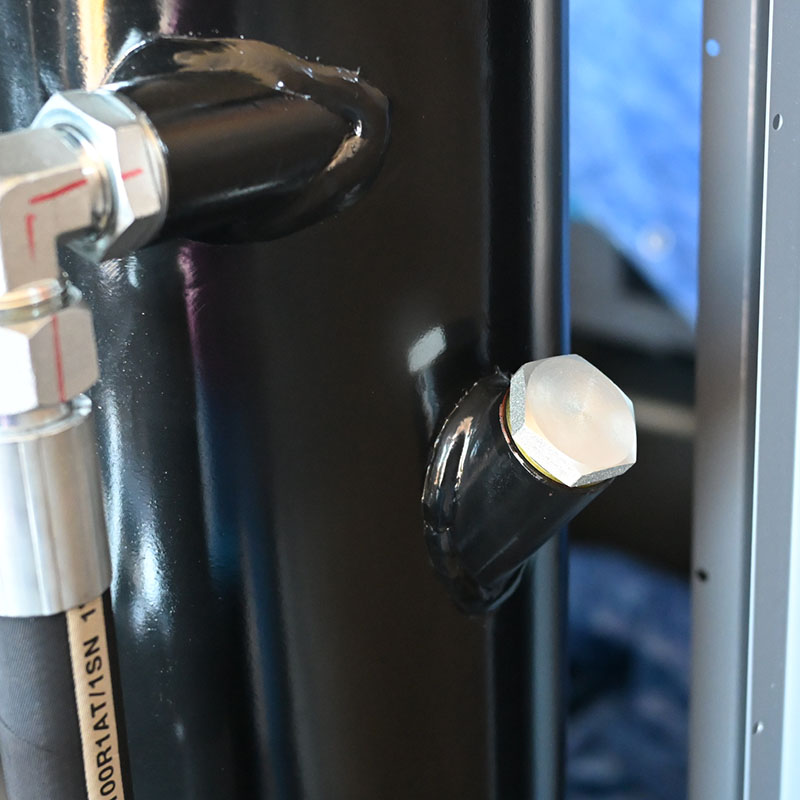

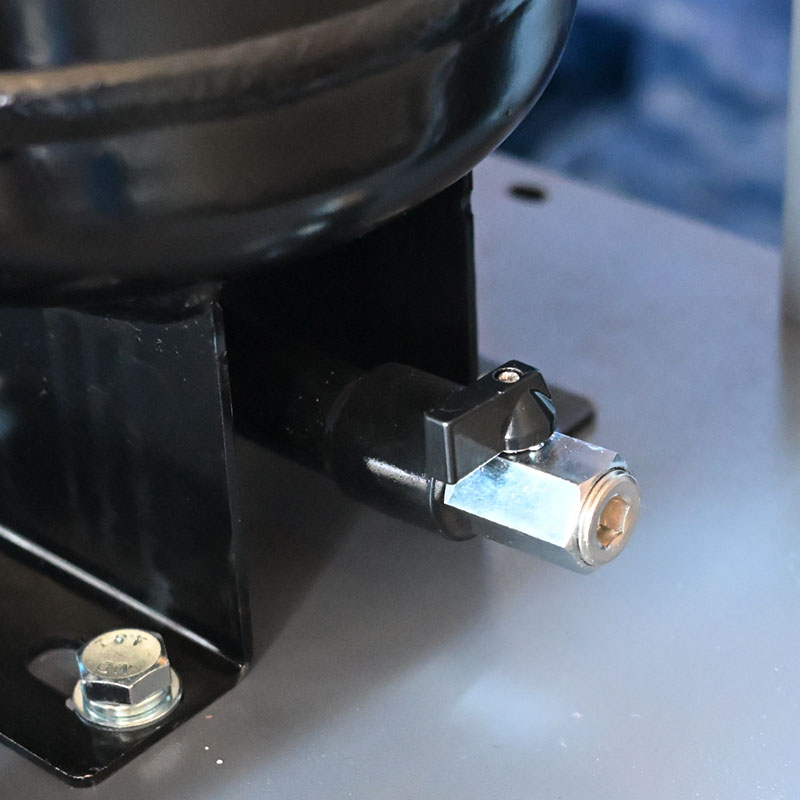

| Drain location for changing oil | Location for filling with oil | |
 |
 |
|
|

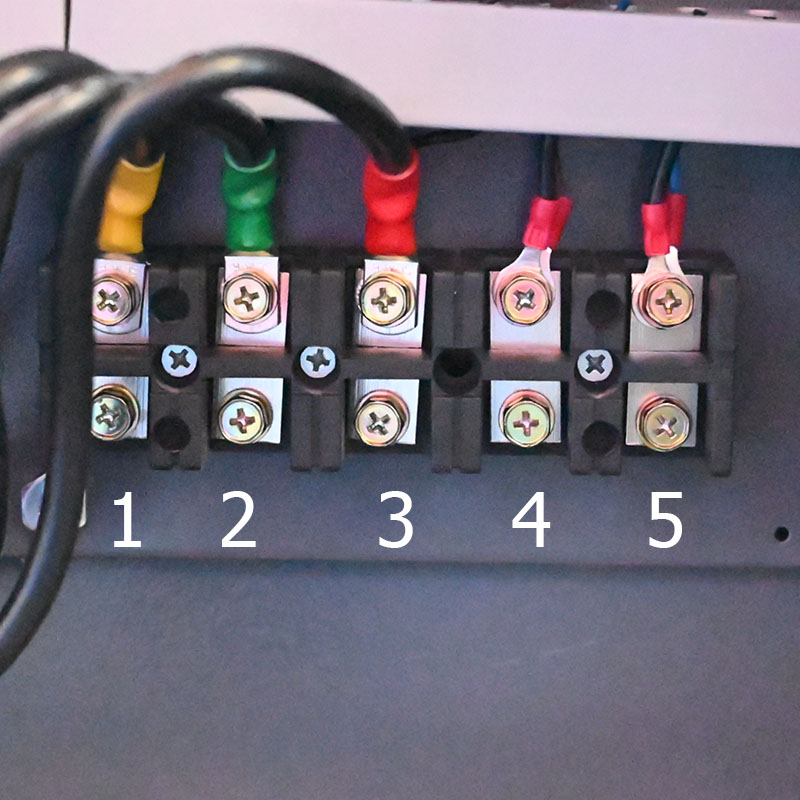

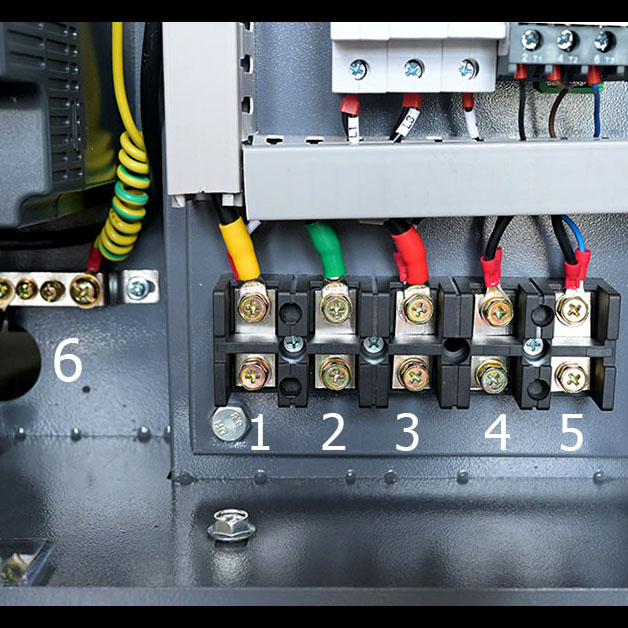

1, 2 and 3 is 220/240v 60hz, three phase. 4 and 5 are for the dryer, 4 and 5 are 220/240v. The machine's main ground is 6. Electrical work requires a qualified electrician |

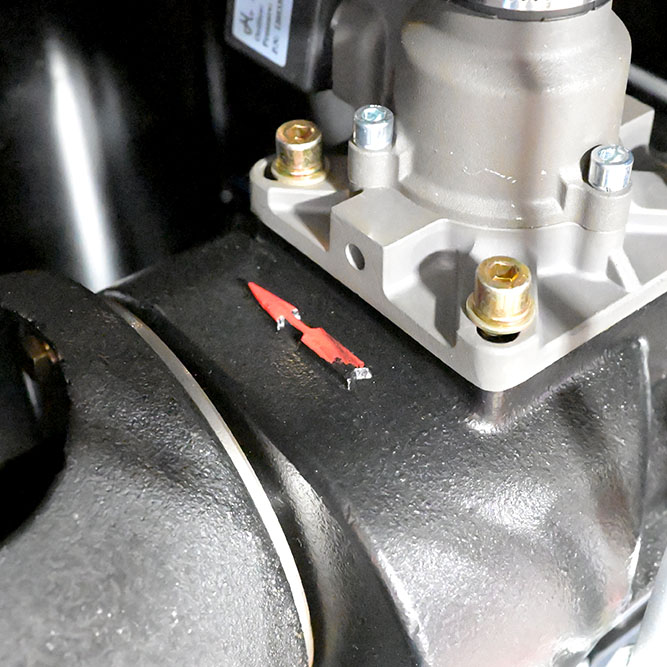

When first starting the compressor the rotation must be in the direction of the arrow | |
|
|
