| Features | 10 HP | 15 HP |
| Voltage | 220/240v 3 phase, 60hz | 220/240v 3 phase, 60hz |
| Motor | Variable speed, direct drive | Variable speed, direct drive |
| Amperage draw | 27 | 40 |
| CFM | 35.5 CFM (1.1 cubic meter) | 56.5 CFM (1.6 cubic meter) |
| Weight | 450kg (990 pounds) | 580kg (1280 pounds) |
| Size | 1500 x 750 x 1475 (5' x 30" x 5') | 1740 x 850 x 1600 (5'9" x 2'10" x 5'3") |
| Compressor Unit Mfg By | Baosi | Baosi |
| Pressure | 8 bar (116 psi) | 8 bar (116 psi) |
| Automatic Timed Tank Drain | Yes | Yes |
| Noise level | 62 db (decibels) | 65 db (decibels) |
| Oil reservoir filled with synthetic oil? | Yes | Yes |
| Included | 1 set of filters plus 2 gallons of synthetic oil. The machine is filled with synthetic oil and after 500 hours you should change the filters and oil. 6 litres is required which is 1.58 gallons. After the first oil change you are good to go for about 6000 hours. | 1 set of filters and 3 gallons of synthetic oil. The machine is filled with synthetic oil and after 500 hours you should change the filters and oil. 10 litres is required which is 2.64 gallons. After the first oil change you are good to go for about 6000 hours. |
| Water/Oil Separator | Most manufactures of compressors use one set of water, oil filters. Our machines have two sets in line for the cleanest possible air. | Most manufactures of compressors use one set of water, oil filters. Our machines have two sets in line for the cleanest possible air. |
| Volume of air reservoir tank | 230 Litre (60 gallons) | 300 Litre (80 gallons) |
| Dryer Type | Refrigerated | Refrigerated |
| Warranty | 1 year parts | 1 year parts |
 |
 |
|
|

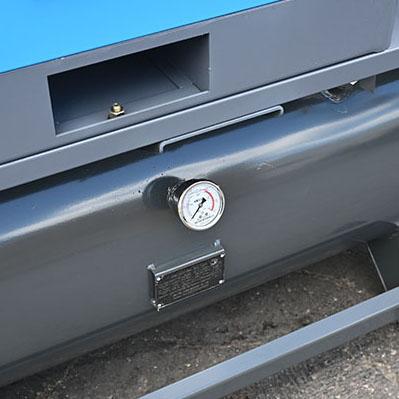

Easy to read tank pressure |

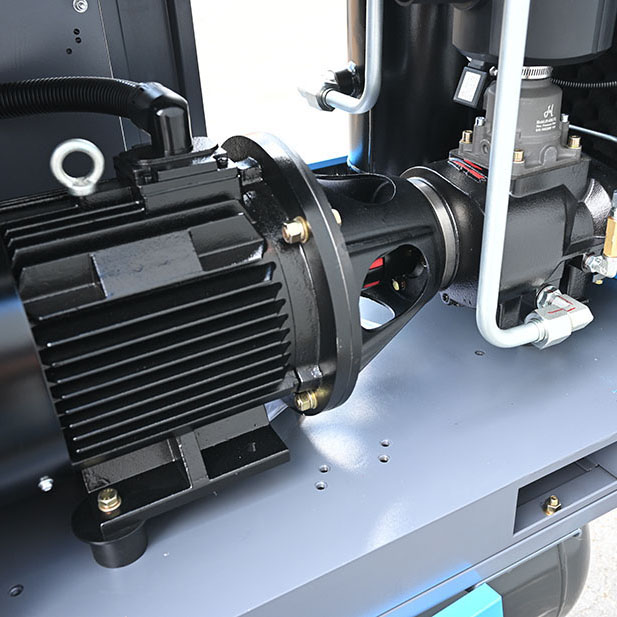

Direct drive to Baosi pump | |
 |
 |
|

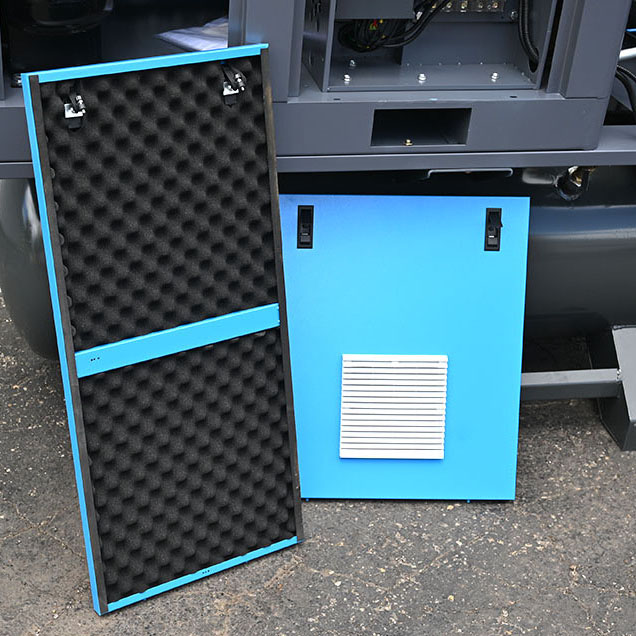

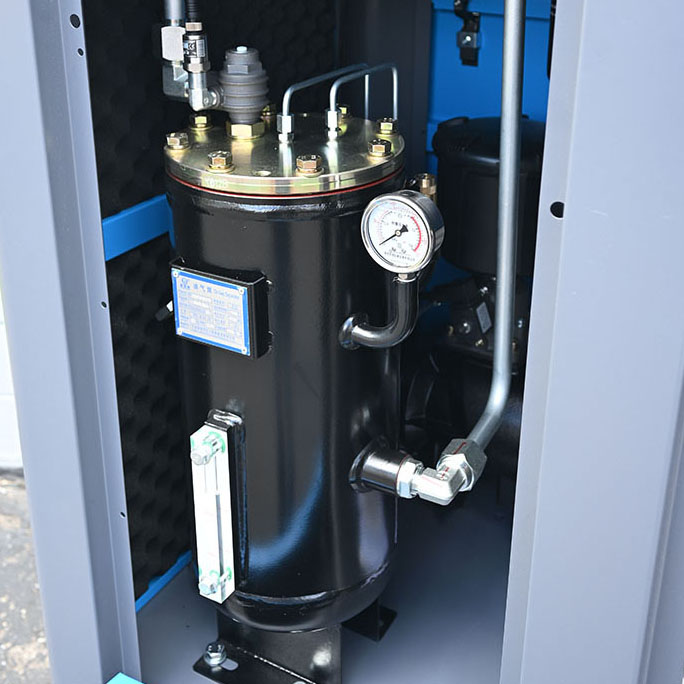

| Oil reserve with sight glass | Most panels have sound deadening material | |
 |
||

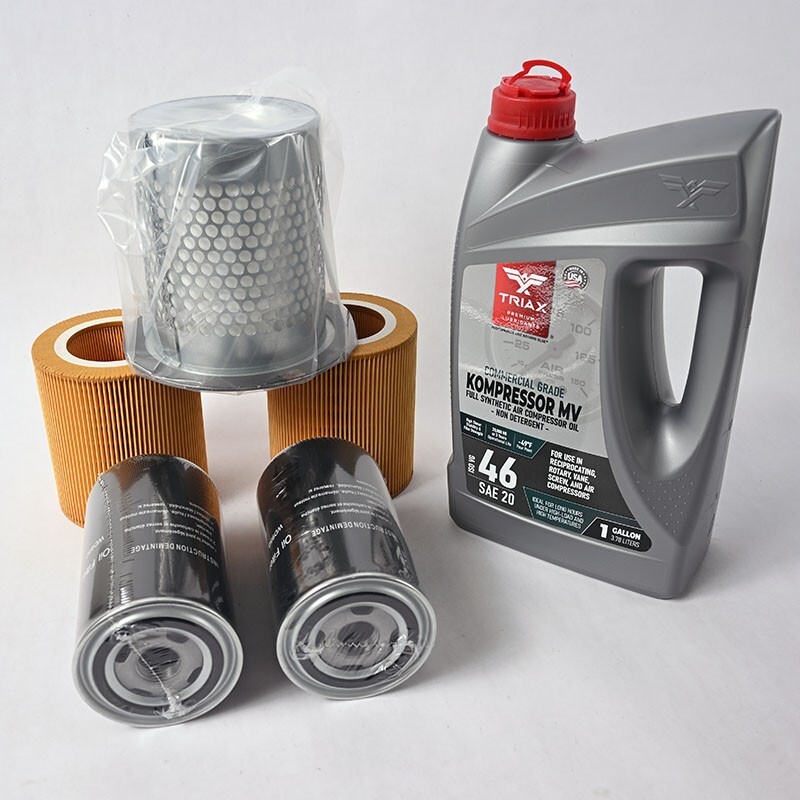

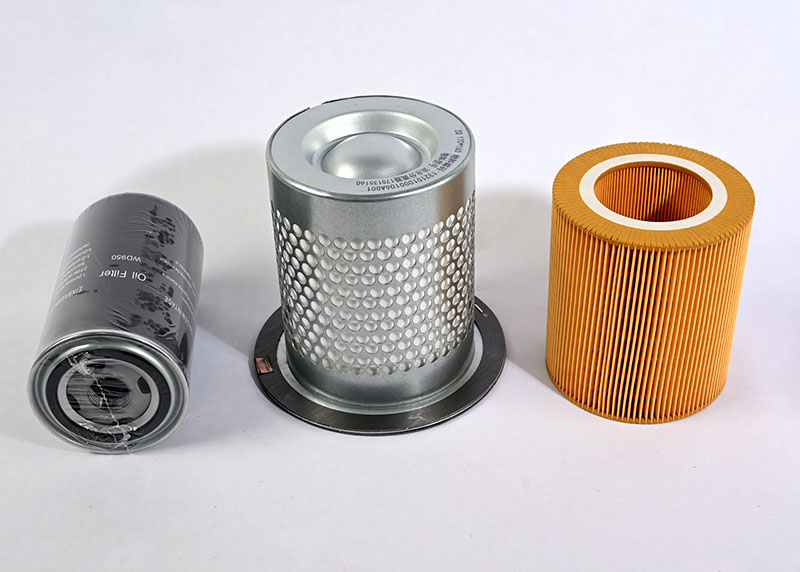

| Included: One set of filters is included for your first oil change at 500 hours |
|
